Drawing of the motor can be obtained HERE.
Drawing of the bracket can be obtained HERE.

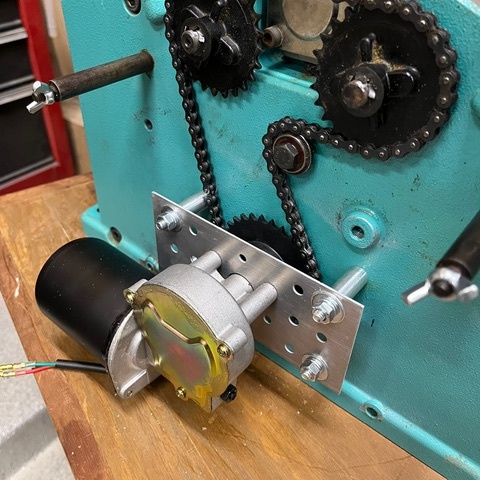

This is a brand new electric gear motor that has extremely high torque to handle many heavy-load applications.
Rated Voltage: 13.5 VDC
Rated Speed: 50 RPM
Rated Load: 60 Watts
Rated Torque: 6 N-m (4.4 ft-lb)
Mounting: Bracket Mount
Shaft Options: 3/8" shaft with 1 flat ("D" shaft) where flat to OD is 0.322" and the length of the shaft is 0.886" long; 10mm shaft with two flats where flat to flat is 6.6mm; Sprocket for #35 roller chain 10 teeth
I used this motor to turn the chute on my 3 point snowblower!! No more getting out of the cab to manually turn the chute.
